Low overall weight, fine-tuned chassis rigidity balance, 18”/17” radial tyres and suspension settings result in a bike with light, easy handling and easy manoeuvrability. It's low estimated dry weight is 215 kg.

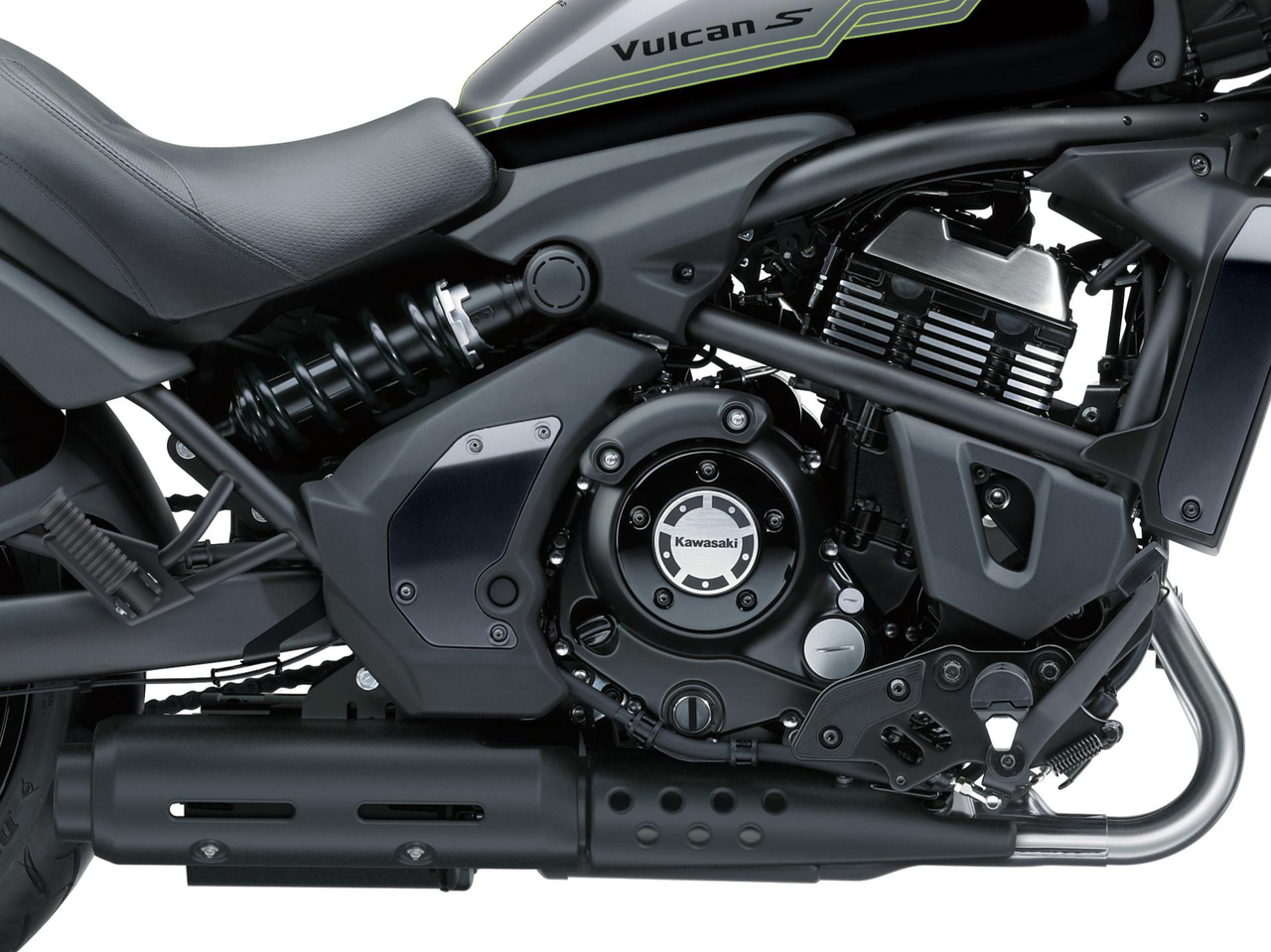

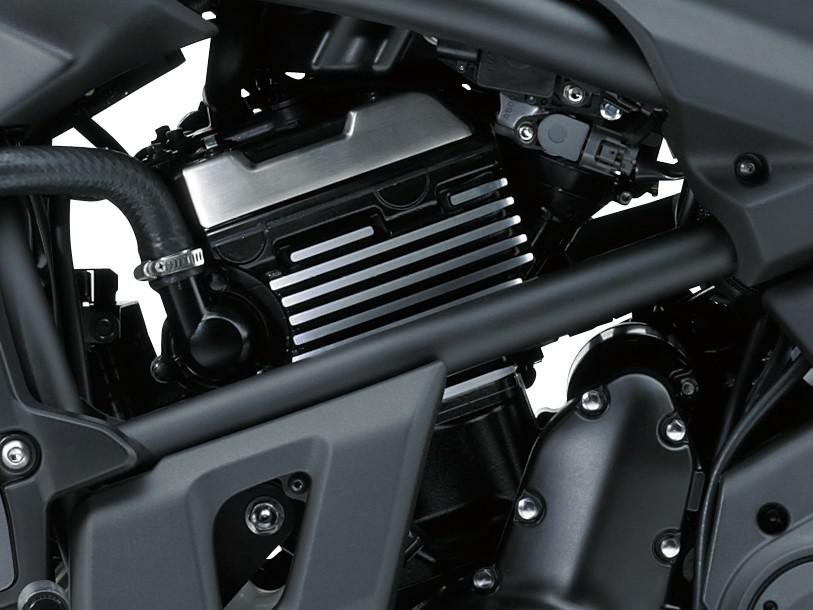

Liquid-cooled, DOHC, 8-valve 649 cm3 Parallel Twin with fuel injection delivers smooth, responsive performance, especially in the low and medium rpm ranges. The engine was tuned for rider-friendly power characteristics that will inspire confidence in new riders. The Vulcan S offers smooth starts from a standstill, smooth acceleration, and a satisfying pull when accelerating. The strong acceleration facilitates highway merging and passing.

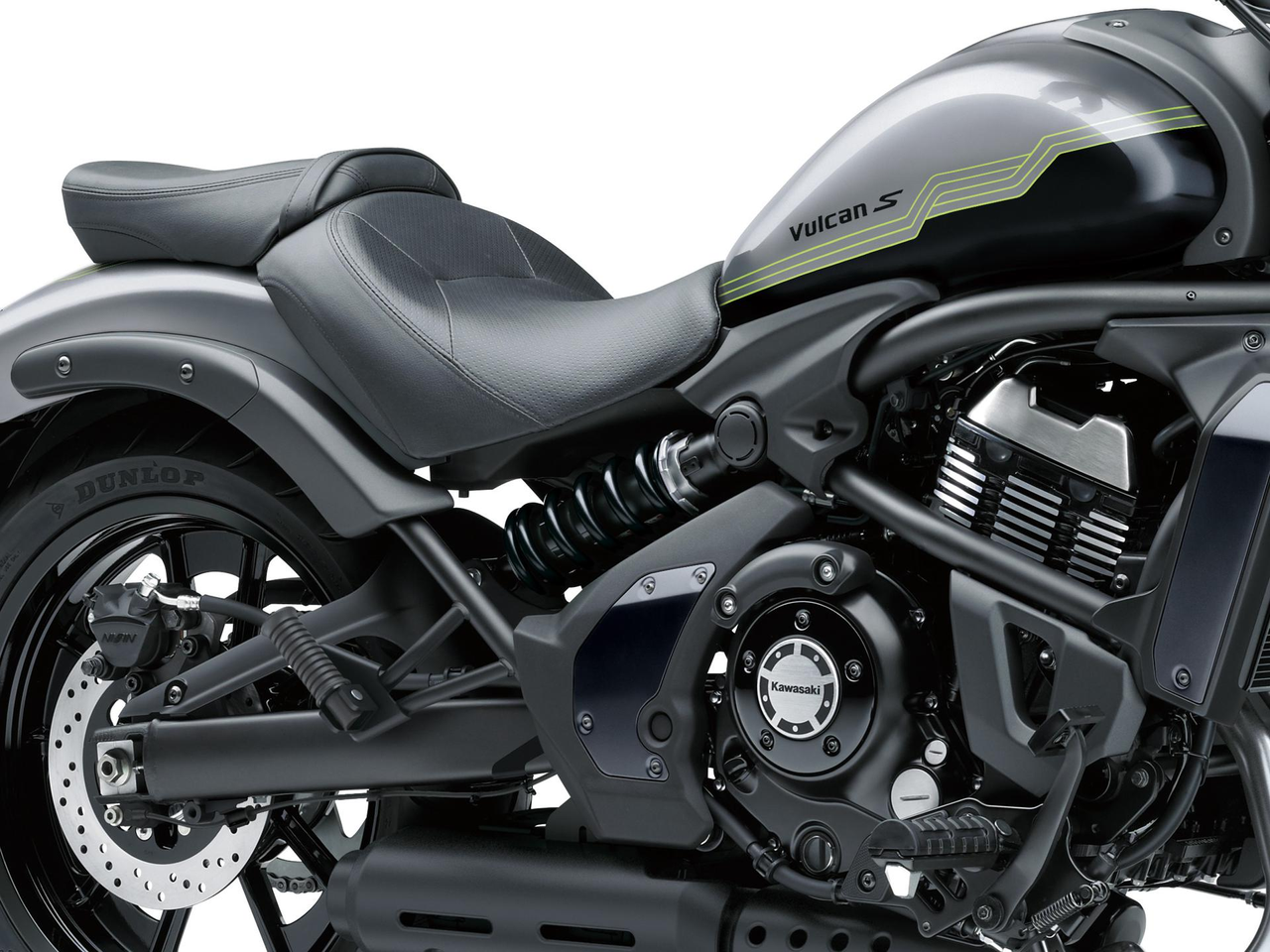

Flowing style with long-and-low stance and modern elements like the original headlamp and cast wheels with five spoke pair design give the Vulcan S very nontraditional cruiser looks.
Being able to easily put your feet on the ground when stopped is one of the most important factors in feeling comfortable on a motorcycle. At 705 mm, the Vulcan S’s low seat is very accommodating.

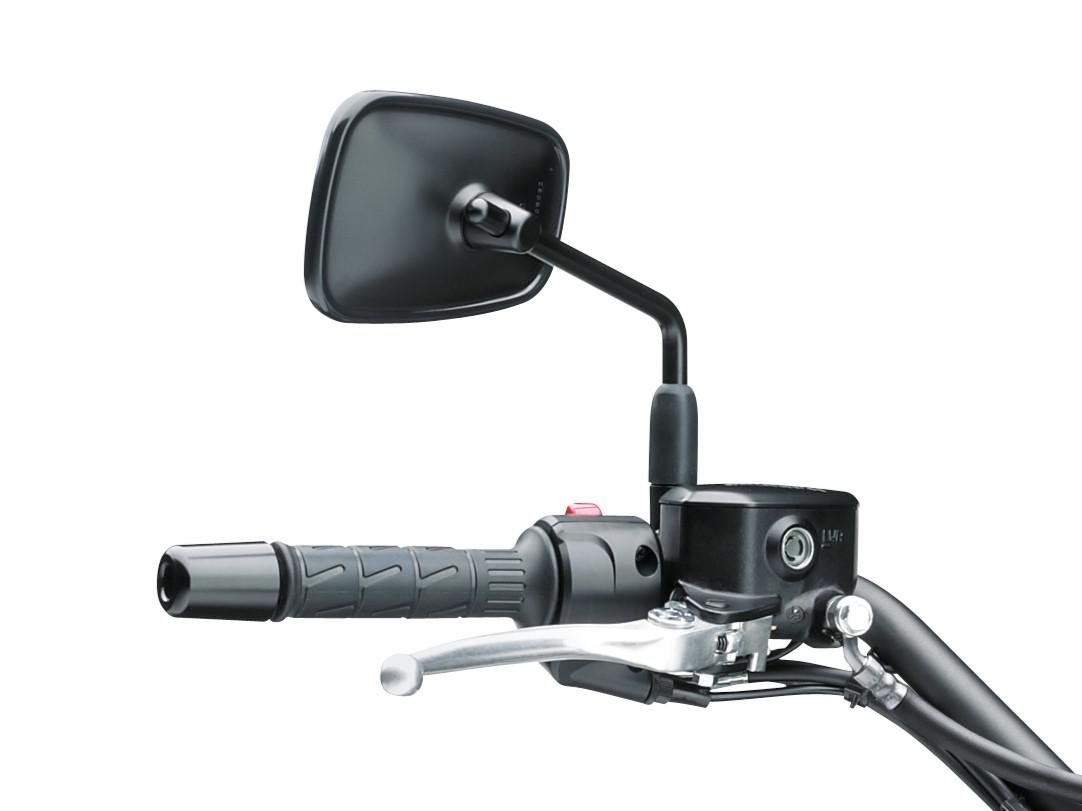

Multi-position levers allow riders to adjust lever position to suit hand size and preference.
The compact engine and slim frame result in a design that is narrow at the knees and feet. Forward positioned footpegs are ideal for relaxed, cruiser style riding.
3-position footpegs allow riders to adjust foot position to suit size and preference. Three positions available: STD, 25 mm forward, 25 mm back.
With its 14 litre fuel tank capacity and the Parallel Twin engine’s good fuel economy, the long range offered by the Vulcan S means riders can go longer between fill-ups—convenient in town, and reassuring when out on a daytrip.
Muffler located under the engine contributes to a low centre of gravity, and is tucked out of the way, making it easier to reach the ground when stopped. The muffler’s design conveys both power and style.
Original-design instrumentation cluster features an analogue-style tachometer and multi-purpose LCD. Convenient features keep riders fully informed of operating conditions. Including a gear indicator.
Wheelbase of 1,575 mm was chosen for a balance of light handling and superior riding stability. The same characteristics that make it fun to ride (light handling and relaxed, rider-friendly ergonomics), also make the Vulcan S ideal for new riders.

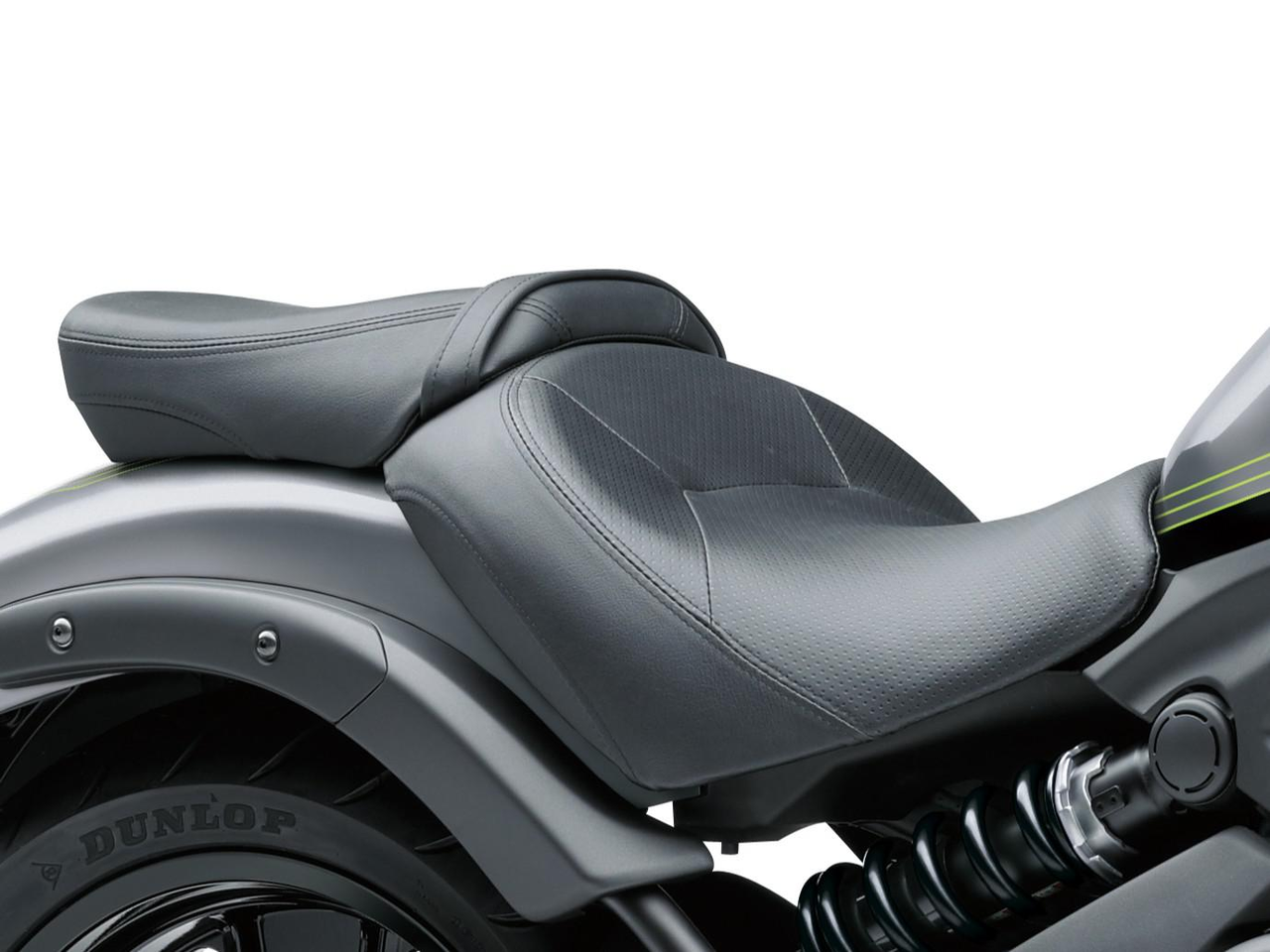

Sculpted seat design with thick padding offers excellent comfort and good hip support.
The design of the frame, rear suspension and swingarm create an integrated line running from the front of the bike to the rear hub. A pipe frame of high-tensile steel gives the bike a lightweight appearance. 3D analysis was used to achieve the target rigidity and stress values.

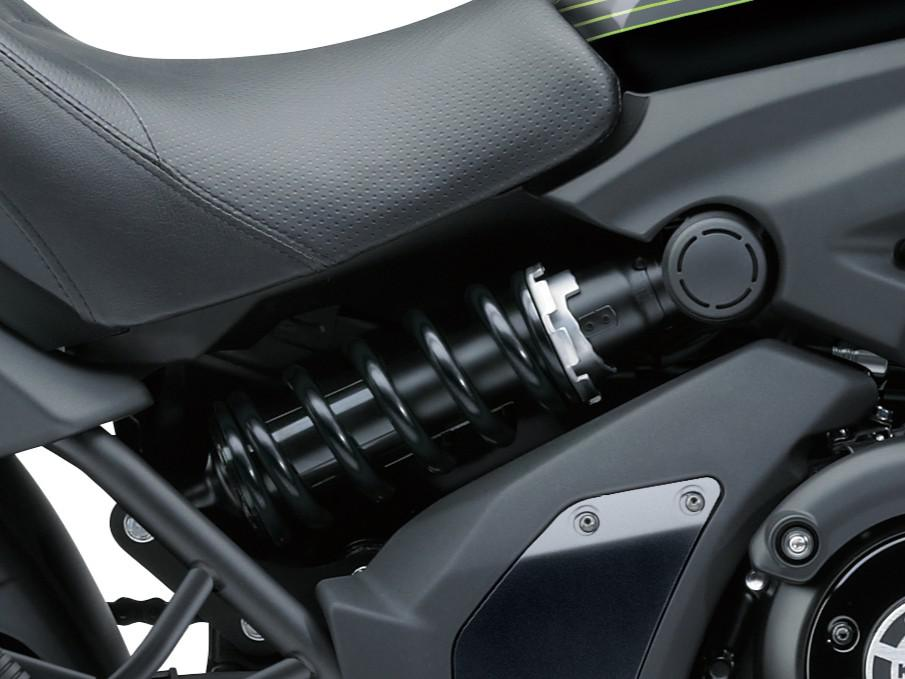

Offset laydown single-shock rear suspension is equipped with linkage to enable a longer stroke for increased ride comfort. The rear suspension arrangement also contributes to the bike’s compact design, freeing up space for a large-volume silencer under the engine. Rear shock features adjustable preload, with 7 positions to suit rider size and payload.

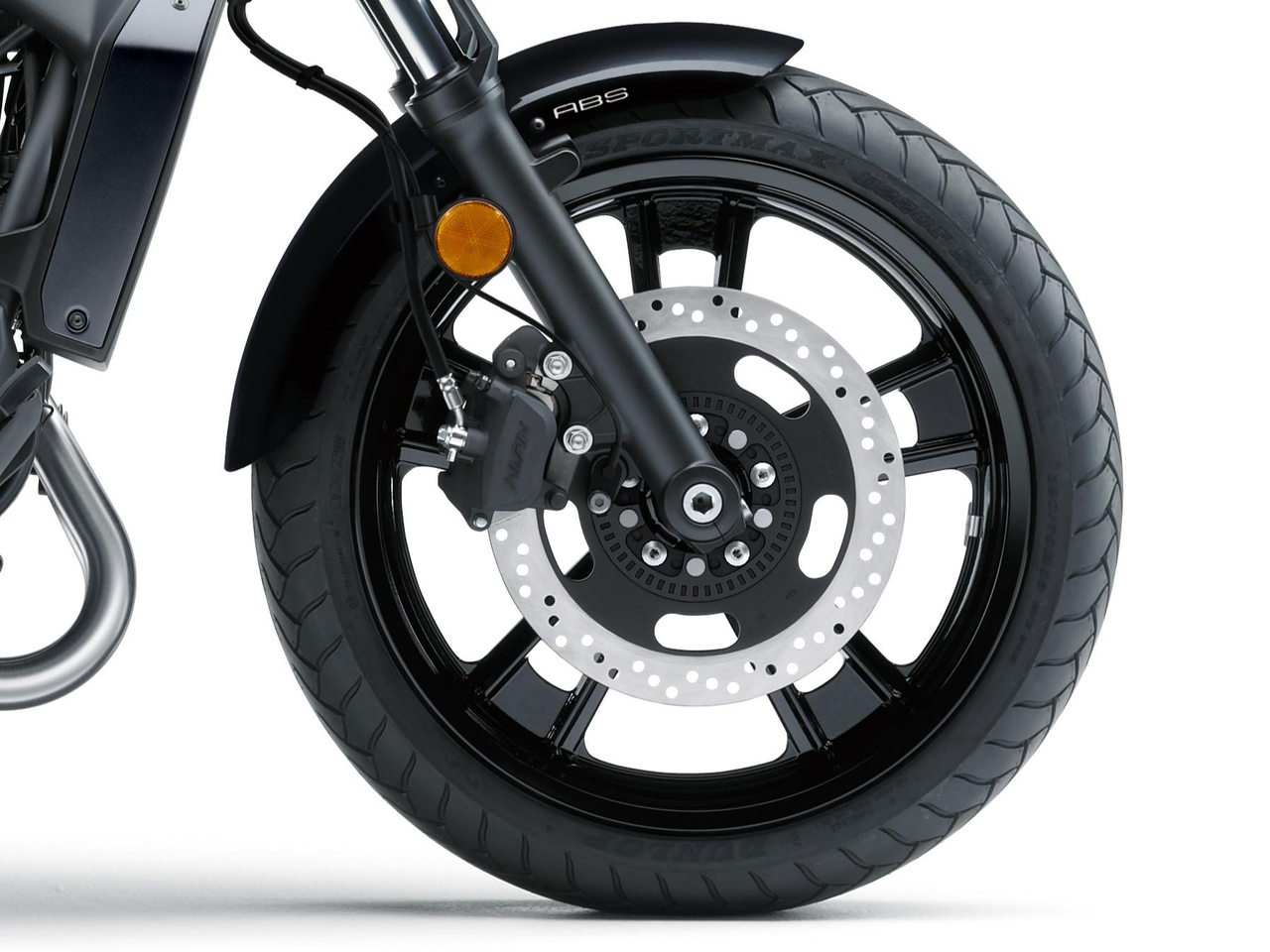

Large-diameter disc brakes balance ample stopping power with easy control for beginning riders.
Dvojité škrtiace klapky ponúkajú vyšší výkon a väčšiu jednoduchosť používania vďaka druhej sade škrtiacich klapiek ovládaných jednotkou ECU.
ERGO-FIT je systém rozhrania, ktorý umožňuje širokej škále jazdcov cítiť sa ako jedno telo so svojím strojom.
Indikátor úsporného jazdenia je značka, ktorá sa zobrazuje na prístrojovom paneli a signalizuje priaznivú spotrebu paliva, čím podporuje úsporné jazdenie.
Systém ABS (protiblokovací systém bŕzd) zabezpečuje stabilný brzdný výkon tým, že zabraňuje zablokovaniu kolies počas brzdenia
| Typ motora | Kvapalinou chladený, štvortaktný radový dvojvalec |
|---|---|
| Kompresný pomer | 10.8:1 |
| Ventilový rozvod | DOHC, 8 ventily |
| Vŕtanie x zdvih | 83.0 x 60.0 mm |
| Zdvihový objem | 649 cm³ |
| Palivový systém | Vstrekovanie paliva: 38 mm x 2 |
| Mazanie | Tlakové mazanie s polosuchou skriňou |
| Štartovanie | Elektrické |
| Zapaľovanie | Akumulátor a cievka (tranzistorové zapaľovanie) |
| Maximálny výkon | 44.7 kW {61 PS} / 7,500 ot./min |
|---|---|
| Maximálny krútiaci moment | 62.4 N•m {6.4 kgf•m} / 6,600 ot./min |
| emisie CO2 | 104 g/km |
| Spotreba paliva | 4.5 l/100km |
| CO2 emisie 35 kW kit | 102.0 g/km |
| Spotreba paliva 35 kW kit | 4.4 l/100km |
| Prevodovka | 6-rýchlostná |
| Spojka | Mokrá viackotúčová |
| Primárny prevodový pomer | 2.095 (88 / 42) |
| Prevodový stupeň 1 | 2.438 (39 / 16) |
| Prevodový stupeň 2 | 1.714 (36 / 21) |
| Prevodový stupeň 3 | 1.333 (32 / 24) |
| Prevodový stupeň 4 | 1.111 (30 / 27) |
| Prevodový stupeň 5 | 0.966 (28 / 29) |
| Prevodový stupeň 6 | 0.852 (23 / 27) |
| Pohon nápravy | Puzdrová reťaz |
| Konečný prevodový pomer | 3.067 (46 / 15) |
| Typ rámu | Rúrkový rám typu Diamond z vysokopevnostnej ocele |
|---|---|
| Závlek kolesa | 120 mm |
| Prepruženie kolesa – predné | 130 mm |
| Prepruženie kolesa – zadné | 80 mm |
| Pneumatika, predná | 120/70 R18 M/C 59H |
| Pneumatika, zadná | 160/60 R17 M/C 69H |
| D x Š x V | 2,310 x 880 x 1,100 mm |
| Uhol natočenia kolies Ľ/P | 35° / 35° |
| Rázvor kolies | 1,575 mm |
| Svetlá výška | 130 mm |
| Celkový objem palivovej nádrže | 14.0 litrov |
| Výška sedadla | 705 mm |
| Pohotovostná hmotnosť* | 229 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Odhadovaná suchá hmotnosť** | 215 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Brzdy, predné | Jeden kotúč |
|---|---|
| Priemer predných bŕzd | Ø 300 mm |
| Typ predného brzdového strmene | Dvojpiestový |
| Brzdy, zadné | Jeden kotúč |
| Priemer zadných bŕzd | Ø 250 mm |
| Typ zadného brzdového strmene | Jednopiestový |
| Odpruženie, predné | Teleskopická vidlica |
| Priemer predného tlmiča | Ø 41 mm |
| Odpruženie, zadné | Nastaviteľný jednoduchý tlmič, vybavený spojovacím mechanizmom a 7-stupňovým nastavením predpätia pružiny |
Čierny výfukový systém Arrow pre Vulcan S. Kompletný systém z nehrdzavejúcej ocele s katalyzátorom a karbónovou koncovkou. Tento systém je ľahší v porovnaní so sériovým výfukovým systémom a poskytuje hlboký športový zvuk. Výfukový systém je homologovaný podľa nariadení EÚ (emisie a hluk) a má typové schválenie ECE. (Dvojitý kyslíkový senzor Euro5+)
Čierny výfukový systém Arrow pre Vulcan S. Kompletný systém z nehrdzavejúcej ocele s katalyzátorom a karbónovou koncovkou. Tento systém je ľahší v porovnaní so sériovým výfukovým systémom a poskytuje hlboký športový zvuk. Výfukový systém je homologovaný podľa nariadení EÚ (emisie a hluk) a má typové schválenie ECE. (Dvojitý kyslíkový senzor Euro5+)
Keep your personal items secure on the road with saddlebags that complement the overall look of your bike.
This black leather saddlebag set has reinforcements to keep the shape in all riding conditions.
Quick release system inside the bag allows bags to be removed from the support easily without tools.
Durable water-resistant marine grade vinyl with genuine leather trim. An interior pocket keeps important papers and documents separate and protected.
A magnetic clasp closure on the lid makes accessing your goods convenient.
KQR mounting system allows for easy installation of KQR Saddlebags once installed.
Load 2.2kg per bag , Inner dimensions: H26 x L33 x D 13cm
The KQR Saddlebag Kit consists of 3 components:
Keep your personal items secure on the road with saddlebags that complement the overall look of your bike.
This black leather saddlebag set has reinforcements to keep the shape in all riding conditions.
Durable water-resistant marine grade vinyl with genuine leather trim. An interior pocket keeps important papers and documents separate and protected.
A magnetic clasp closure on the lid makes accessing your goods convenient.
(Load 2.2kg per bag , Inner dimensions: H26 x L33 x D 13cm)
The Fixed Saddlebag Kit consists of 2 components:
Large Windscreen Kit for improved comfort and wind protection.
This Winscreen Kit can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 54cm (effective = 43cm), width = 45cm.
Complete Windscreen Kit consists of 3 components:
Medium Windscreen Kit for improved comfort and wind protection.
This Winscreen Kit can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 47cm (effective = 36cm), width = 39cm.
Complete Windscreen Kit consists of 3 components:
Large KQR (Quick Release) Windscreen Kit for improved comfort and wind protection.
This Windscreen Kit with lock allows for easy installation or removal of windshield once installed.
The Windscreen mounting system can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 54cm (effective = 43cm), width = 45cm.
Complete Windscreen Kit consists of 3 components:
Medium KQR (Quick Release) Windscreen Kit for improved comfort and wind protection.
This Windscreen Kit with lock allows for easy installation or removal of windshield once installed.
The Windscreen mounting system can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 47cm (effective = 36cm), width = 39cm.
Complete Windscreen Kit consists of 3 components:
Kawasaki Quick Release Passenger Backrest
Padded backrest provides passenger comfort and features the KQR™ mounting system for installation or removal with minimal use of tools
Luggage Rack Chrome (Option for KQR backrest)
Durable powder coated steel luggage rack that replaces the passenger seat.
Designed to enhance usability and styling.
Securely mount this luggage rack to your rear fender for extra cargo capacity.
Developed by Kawasaki to integrate with the clean, modern lines of your Vulcan S.
Length = 35cm, width = 20cm. Anthracite/Black or Chrome finish.
Important Notes: Not suitable for passenger seating.
Kawasaki Quick Release Passenger Backrest
Padded backrest provides passenger comfort and features the KQR™ mounting system for installation or removal with minimal use of tools
18-21L Rear Bag. Replaces the passenger seat.
Rugged, water-resistant nylon construction with reinforced foam body and lid.
Replaces rear seat and mounts to rear fender side bolts using custom quad side straps and steel center bracket with non-scratch rubberized coating to help protect paint finish
Expandable feature adds 7cm of vertical storage capacity (18-21 liters). Reflective piping for night visibility. Logo on lid.
L=45, W=25, H=20-28cm
Note: Do not use on satin, semi-gloss, or flat finish bodywork surfaces
Rugged, water-resistant nylon tank bag with reinforced foam body and lid to hold shape even when empty.
Expandable feature adds 7cm of storage capacity.
Clear window tray (13x10x4cm) for transponder, coins, etc. Dual outlet ports.
Reflective piping, front hook, magnetic skirt and rear strap. Non-scratch rubberized coating to protect paint finish.
Power/drink tube port at top of bag for direct access to electronic devices, hydration systems, etc. Including rain cover.
Volume 18-20L
L=43 W=28 H=15-22cm
Do not use on semi-gloss or matt/flat finish fuel tank surfaces
Durable black powder coated steel luggage rack mounts to your fixed passenger backrest.
Designed by Kawasaki to enhance your Vulcan S motorcycle styling while providing extra space for whatever you take with you on the road.
All required brackets and hardware included.
20cm (8") long and 23cm (9") wide.
The Passenger Luggage Rack installation requires 2 components:
ERGO-FIT™ Reduced Reach.
Suggested for riders shorter than 170cm.
A combination of adjustable factory components and accessories reduce the reach to handlebars and footpegs for the best possible fit.
ERGO-FIT™ Extended Reach.
Suggested for riders taller than 183cm.
Adjustable factory components and Ergo-Fit extended reach accessories give you comfort and confidence with more room to stretch out and enjoy your ride.
Univerzálny balík GPS umožňuje rôzne možnosti inštalácie bez použitia ďalšieho príslušenstva. Navigačný systém je možné namontovať do puzdra alebo priamo na systém bez puzdra. Montáž na zrkadlo alebo riadidlá (22,28–25,4 mm) alebo na iné montážne body pomocou gule M6 alebo M8 a otočného ramena RAM. Vodotesné puzdro na navigáciu veľkosti M chráni vaše GPS pred poveternostnými vplyvmi. Obsah balenia: Svorka s gumovými vložkami Gulička M8 a adaptér pre guličku M6 Zrkadlový závit GPS-Mount RAM-Arm (8 cm) Univerzálny držiak NAVi-Bag M (15 x 10 x 4 cm)
Relay kit for Vulcan S lightbar/sub lamp, 12V outlet, Gear position indicator or other electrical accessories.
Relay is needed only one time when multiple electrical accessories are fitted. (Only one Relay Kit required per Vulcan S)
Medium Clear Windscreen for improved wind protection. Height 47 cm (effective 36 cm), width 39 cm.
Requires separately sold windscreen bracket set (Anthracite/Black) - 999940526B and front fork bracket set (Chrome) - 999940546 .
Medium height windscreen for improved comfort and wind protection.
KQR Fork windshield bracket kit with durable chrome finish.
This KQR windshield mounting system can be fitted to the front fork without removing fork legs.

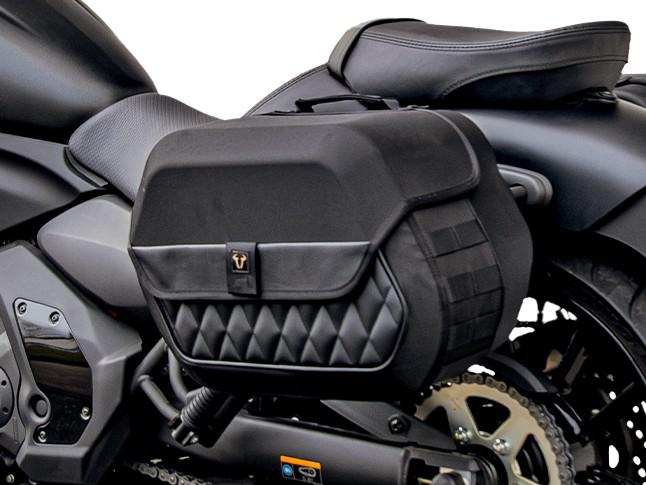

Udržte si svoje osobné veci v bezpečí na cestách s týmito bočnými taškami, ktoré dokonale doplnia celkový vzhľad vášho motocykla. Táto sada čiernych kožených bočných tašiek má výstuhy, ktoré im pomáhajú udržať tvar za každých jazdných podmienok. Systém rýchleho uvoľnenia vo vnútri tašky umožňuje jednoduché odobratie tašiek z držiakov bez použitia náradia. Sú vyrobené z odolného vodeodolného vinylu námornej triedy s ozdobnými prvkami z pravej kože. Vnútorné vrecko udržiava dôležité papiere a dokumenty oddelené a chránené. Magnetické zapínanie na veku zaisťuje pohodlný prístup k vašim veciam. Montážny systém KQR™ umožňuje jednoduchú inštaláciu KQR™ bočných tašiek po ich namontovaní. (Nosnosť: 2,2 kg na tašku, Vnútorné rozmery: V26 x D33 x H13 cm) Vyžaduje KQR™ držiak a podpery bočných tašiek (predávajú sa samostatne).
Stylish and rugged water-resistant nylon saddlebags. Reinforced molded foam body helps maintain shape even when empty.
Features integrated handgrips, zippered lids, and reflective piping.
Includes a set of two waterproof liners to protect cargo in wet weather.
Capacity: 2 × 11 L. Maximum load: 2 kg per bag.
Dimensions: L = 48 cm, H = 28 cm, W = 16 cm (19" × 11" × 6 1/2").
Requires Saddlebag Support Brackets with optional KQR Bracket Kit, both sold seperately.
Large Clear Windscreen
Height = 54 cm (effective = 43 cm), width = 45 cm
Café Style windscreen with KQR™ (Kawasaki Quick Release) for additional wind protection and greater comfort.
The following parts are required:
Café Style windscreen + bracket (black) - 999940736
KQR™ fork bracket (chrome-plated) - 999940546
The bracket for the windscreen with KQR™ (Kawasaki Quick Release) is only available in chrome.
Durable black powder coated steel luggage rack mounts to your fixed passenger backrest.
Designed by Kawasaki to enhance your Vulcan S motorcycle styling while providing extra space for whatever you take with you on the road.
Metal bracket with LED spotlamps with low power consumption. For increased visibility. Bar available in black. (Requires additional relay)
Robustný a ľahko inštalovateľný držiak pre váš navigačný systém. Pasuje na väčšinu bežných súčasných navigačných systémov.
